The intelligent charging solution with a modern look and a permanently attached cable. It is easy to install and convenient to use. Key smart features include PV surplus charging, flexible electricity tariffs and more. The wallbox is in accordance with ISO 15118 V2X ready and Plug&Charge ready. Charging power: from 1.4 kW to 11/22 kW, depending on the number of phases (1-phase, 3-phase).
new

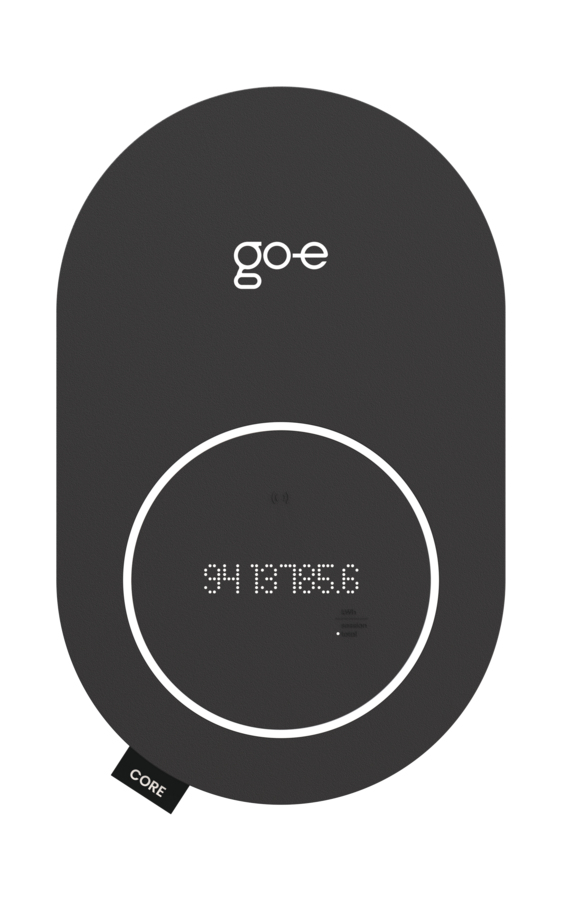

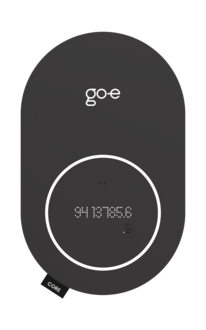

go-e Charger CORE
With attached type 2 cable
-
Plug&Charge
-
V2X ready
-
Photovoltaics
-
App
-
Charging Control
-
Scheduler
-
Flexible Energy Tariffs
-
Load Balancing
-
DC Protection Module
-
RFID
-
Bluetooth
-
Wifi & Hotspot
-
Cellular connectivity
-
OCPP
-
API
-
Ethernet
Easy control via app and integration with external systems
ALWAYS CONVENIENT CHARGING
In addition to wireless data transmission via WiFi and cellular network (LTE), the go-e Charger CORE offers wired data exchange via Ethernet. You can control the wallbox via the go-e app and go-e Portal (coming soon). With open API interfaces, OCPP, MQTT and Modbus TCP, it easily connects to third-party systems like backends, energy management, billing, or PV surplus systems.
Flexible installation options
ALWAYS CONVENIENT CHARGING
The go-e Charger CORE offers versatile installation options, allowing you to adapt it to your space. You can route the power cable from above, below, or behind, which provides flexibility for different environments. For example, in a compact garage, installing the cable from your preferred side can save space and help you avoid unnecessary obstructions.
Scalable thanks to load balancing
ALWAYS CONVENIENT CHARGING
The go-e Charger supports static load balancing by default, enabling multiple cars to charge without extra hardware. This prevents overloading of the power supply in locations with many cars. The go-e Controller, or other load balancing systems (via OCPP, Modbus TCP, or open API) enable dynamic load balancing, adjusting charging power based on available electricity, including surplus PV power.
Smart scheduling = cheaper charging
ALWAYS CONVENIENT CHARGING
With the go-e Charger, you can schedule charging to take advantage of off-peak times when electricity is cheaper. This is great for those with flexible tariffs or wanting to reduce grid load. For example, if electricity is more expensive in the evening, you can schedule charging for early morning to save money. The function is easy to manage through the app.
Charge reliably in any weather
ALWAYS CONVENIENT CHARGING
The go-e Charger works perfectly in all weather conditions (protection class IP66), making it ideal for outdoor parking lots. This is especially helpful if your building has limited indoor parking. For added security, you can use the app to set up RFID access, allowing only you or approved users to charge. You can also track each user's power usage to ensure fairness.
Plug&Charge technology: A step ahead, coming soon
OUR PRODUCT
The go-e Charger CORE is Plug&Charge-ready, which will enable automatic authorisation, activation, and billing of charging sessions in the future. This feature will eliminate the need for RFID cards or mobile apps. Ideal for outdoor locations or shared charging stations, allowing for a seamless and efficient charging experience.
Convenient charging with an integrated cable
OUR PRODUCT
The wallbox comes with a permanently attached charging cable (6 m) with a type 2 plug, so charging is always ready when you are. This allows for quick, straightforward charging at home, in public parking lots, or at a workplace. It simplifies the process, ensuring you can charge the electric vehicle without additional equipment.
Wallbox prepared for the future
OUR PRODUCT
The go-e Charger CORE is ready for V2X* according to ISO 15118. This includes vehicle-to-grid (V2G) and vehicle-to-home (V2H), also known as bidirectional charging. This means that in the future, once the technology is available, EV owners can use their car battery to power their home or contribute to the grid.
* The hardware is ready now, with the functionality to be activated through a software update in the future.
Smart Charging with go-e App
EVEN SMARTER CHARGING
* The app can also be used through the access point built into the charger. However, without WiFi or LTE, only local control is possible, and some features like flexible electricity tariffs and load balancing will not be available.
Download here
Technical Specifications
Hardfacts
Maximum charging power
Configurable charging current
Rated voltage
Security
Comfort and sustainability
Control, amperage and status display
- App or backend (worldwide via mobile radio, WLAN, LAN and locally via Bluetooth),
- Display via LED and app
Type 2 charging cable
- 6 m cable, 5 x 6 mm² + 1 x 0,5 mm2
Dimensions
- Approx. 18,6 x 29,7 x 9,9 cm
Interfaces, communication protocols
- RFID, WLAN, Bluetooth (BLE ready), mobile radio (LTE), LAN, digital input, digital output, powerline communication
- HTTP API (Local + Cloud), MQTT,
- OCPP 1.6 (Json), Modbus TCP
Weight
- Approx. 2,00 kg (11/22 kW) without charging cable
go-e Charger in Comparison
COMPARE OUR PRODUCTS
Want to see the main distinctions between go-e Chargers? Select the models you would like to compare and find the charger that suits you best.
go-e Charger CORE
- Dimension
- Approx. 18,6 x 29,7 x 9,9 cm
- Weight
- 5.25 kg (cable included)
- Voltage
- 230 - 240 V (single-phase) / 400 - 415 V (three-phase)
1/3 phase switching via app - Plug
- Dimensions according to data sheet (provided by electrician)
- Configurable charging current
- 6 A to 16 A / 32 A (e.g. 1.4 kW - 3.7 kW - 7.4 kW - 11 kW / 22 kW) - The charging power is limited to 11 kW on delivery and can be extended to 22 kW by the installer
- IP rating
- IP66
- Other features
- Identical product to the Gemini series with the following additional features:
- V2X ready in accordance with ISO 15118
- Plug&Charge ready in accordance with ISO 15118
- LED display for showing charged kwh
- Wi-Fi hotspot
- Yes
- Wi-Fi connection
- Yes
- 4G/LTE
- Yes
- 2G/EDGE fallback
- Yes
- Bluetooth
- BLE ready
- Ethernet
- Yes
- Energy meter (simple)
- Yes
- Energy meter MID compliant
- No
- Measurement and calibration law compliant
- No
go-e Charger PRO CABLE
- Dimension
- Approx. 18,6 x 29,7 x 9,9 cm
- Weight
- Approx. 2,00 kg
- Voltage
- 230 V - 240 V (single-phase) / 400 V - 415 V (three-phase) 1-/3-phase switching via app
- Plug
- Dimensions according to data sheet (to be provided by installer)
- Configurable charging current
- 6 A to 16 A / 32 A (e. g. 1.4 kW - 3.7 kW - 7.4 kW – 11 / 22 kW) - Charging capacity limited to 11 kW on delivery, can be increased to 22 kW by the installer
- IP rating
- IP66
- Other features
- Identical to Gemini series and also offers:
- V2X ready in accordance with ISO 15118
- Plug&Charge ready in accordance with ISO 15118
- LED display to show the charged kWh
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- yes
- 2G/EDGE fallback
- yes
- Bluetooth
- BLE ready
- Ethernet
- Yes
- Energy meter (simple)
- No
- Energy meter MID compliant
- Yes
- Measurement and calibration law compliant
- No
go-e Charger PRO CABLE ME
- Dimension
- Approx. 18,6 x 29,7 x 9,9 cm
- Weight
- Approx. 2,00 kg
- Voltage
- 230 V - 240 V (single-phase) / 400 V - 415 V (three-phase)
1-/3-phase switching via app - Plug
- Dimensions according to data sheet (to be provided by installer)
- Configurable charging current
- 6 A to 16 A / 32 A (e. g. 1.4 kW - 3.7 kW - 7.4 kW – 11 / 22 kW) - Charging capacity limited to 11 kW on delivery, can be increased to 22 kW by the installer
- IP rating
- IP66
- Other features
- Identical to Gemini series and also offers:
- V2X ready in accordance with ISO 15118
- Plug&Charge ready in accordance with ISO 15118
- LED display to show the charged kWh
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- yes
- 2G/EDGE fallback
- yes
- Bluetooth
- BLE ready
- Ethernet
- Yes
- Energy meter (simple)
- No
- Energy meter MID compliant
- Yes
- Measurement and calibration law compliant
- Yes (expected from Q4 2025)
go-e Charger Gemini flex 2.0 22 kW
- Dimension
- Approx. 15.5 x 26 x 11 cm
- Weight
- Approx. 1,82 kg
- Voltage
- 230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app - Plug
- 30 cm cable, 5 x 6 mm² + plug CEE red 32 A
- Configurable charging current
- 6 A to 32 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW - 22 kW)
- IP rating
- IP65
- Other features
- Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
- Wi-Fi hotspot
- yes (can be deactivated)
- Wi-Fi connection
- yes
- 4G/LTE
- yes
- 2G/EDGE fallback
- yes
- Bluetooth
- no
- Ethernet
- no
- Energy meter (simple)
- yes
- Energy meter MID compliant
- no
- Measurement and calibration law compliant
- no
go-e Charger Gemini flex 2.0 11 kW
- Dimension
- Approx. 15,5 x 26 x 11 cm
- Weight
- Approx. 1.63 kg
- Voltage
- 230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app - Plug
- 30 cm cable, 5 x 2.5 mm² + plug CEE red 16 A
- Configurable charging current
- 6 A to 16 A (1,4 kW - 3,7 kW - 7,4 kW - 11 kW)
- IP rating
- IP65
- Other features
- Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
- Wi-Fi hotspot
- yes (can be deactivated)
- Wi-Fi connection
- yes
- 4G/LTE
- yes
- 2G/EDGE fallback
- yes
- Bluetooth
- no
- Ethernet
- no
- Energy meter (simple)
- yes
- Energy meter MID compliant
- no
- Measurement and calibration law compliant
- no
go-e Charger Gemini 2.0 11 kW
- Dimension
- Approx. 15,5 x 26 x 11 cm
- Weight
- Approx. 1.84 kg
- Voltage
- 230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app - Plug
- 1.8 m cable, 5 x 2.5 mm² (11 kW) + 2 data cables for grid serving control
- Configurable charging current
- 6 A to 16 A (1,4 kW - 3,7 kW - 7,4 kW - 11 kW)
- IP rating
- IP65
- Other features
- Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
- Wi-Fi hotspot
- yes (can be deactivated)
- Wi-Fi connection
- yes
- 4G/LTE
- yes
- 2G/EDGE fallback
- yes
- Bluetooth
- no
- Ethernet
- no
- Energy meter (simple)
- yes
- Energy meter MID compliant
- no
- Measurement and calibration law compliant
- no
go-e Charger Gemini 2.0 22 kW
- Dimension
- Approx. 15,5 x 26 x 11 cm
- Weight
- Approx. 2,30 kg
- Voltage
- 230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app - Plug
- 1.8 m cable, 5 x 6 mm² (22 kW) + 2 data cables for grid serving control
- Configurable charging current
- 6 A to 32 A (1,4 kW - 3,7 kW - 7,4 kW - 11 kW - 22 kW)
- IP rating
- IP65
- Other features
- Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- yes
- 2G/EDGE fallback
- yes
- Bluetooth
- no
- Ethernet
- no
- Energy meter (simple)
- yes
- Energy meter MID compliant
- no
- Measurement and calibration law compliant
- no
go-e Charger Gemini 11 kW
- Dimension
- Approx. 15.5 x 26 x 11 cm
- Weight
- Approx. 1.85 kg
- Voltage
- 230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app (from hardware version V3) - Plug
- 1.8 m cable, 5 x 2.5 mm² (11 kW) + 2 data cables for grid serving control
- Configurable charging current
- 6 A to 16 A
- IP rating
- IP65
- Other features
- Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- no
- 2G/EDGE fallback
- no
- Bluetooth
- no
- Ethernet
- no
- Energy meter (simple)
- yes
- Energy meter MID compliant
- no
- Measurement and calibration law compliant
- no
go-e Charger Gemini 22 kW
- Dimension
- Approx. 15.5 x 26 x 11 cm
- Weight
- Approx. 2.30 kg
- Voltage
- 230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app - Plug
- 1.8 m cable, 5 x 6 mm² (22 kW) + 2 data cables for grid serving control
- Configurable charging current
- 6 A to 32 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW - 22 kW)
- IP rating
- IP65
- Other features
- Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- no
- 2G/EDGE fallback
- no
- Bluetooth
- no
- Ethernet
- no
- Energy meter (simple)
- yes
- Energy meter MID compliant
- no
- Measurement and calibration law compliant
- no
go-e Charger Gemini flex 11 kW
- Dimension
- Approx. 15.5 x 26 x 11 cm
- Weight
- Approx. 1.63 kg
- Voltage
- 230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app - Plug
- 30 cm cable, 5 x 2.5 mm² + plug CEE red 16 A
- Configurable charging current
- 6 A to 16 A (1,4 kW - 3,7 kW - 7,4 kW - 11 kW)
- IP rating
- IP65
- Other features
- Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- no
- 2G/EDGE fallback
- no
- Bluetooth
- no
- Ethernet
- no
- Energy meter (simple)
- yes
- Energy meter MID compliant
- no
- Measurement and calibration law compliant
- no
go-e Charger Gemini flex 22 kW
- Dimension
- Approx. 15.5 x 26 x 11 cm
- Weight
- Approx. 1.82 kg
- Voltage
- 230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app - Plug
- 30 cm cable, 5 x 6 mm² + plug CEE red 32 A
- Configurable charging current
- 6 A to 32 A
- IP rating
- IP65
- Other features
- Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- no
- 2G/EDGE fallback
- no
- Bluetooth
- no
- Ethernet
- no
- Energy meter (simple)
- yes
- Energy meter MID compliant
- no
- Measurement and calibration law compliant
- no
go-e Charger CORE
- Dimension
- Approx. 18,6 x 29,7 x 9,9 cm
- Weight
- 5.25 kg (cable included)
- Voltage
- 230 - 240 V (single-phase) / 400 - 415 V (three-phase)
1/3 phase switching via app - Plug
- Dimensions according to data sheet (provided by electrician)
- Configurable charging current
- 6 A to 16 A / 32 A (e.g. 1.4 kW - 3.7 kW - 7.4 kW - 11 kW / 22 kW) - The charging power is limited to 11 kW on delivery and can be extended to 22 kW by the installer
- IP rating
- IP66
- Other features
- Identical product to the Gemini series with the following additional features:
- V2X ready in accordance with ISO 15118
- Plug&Charge ready in accordance with ISO 15118
- LED display for showing charged kwh
- Wi-Fi hotspot
- Yes
- Wi-Fi connection
- Yes
- 4G/LTE
- Yes
- 2G/EDGE fallback
- Yes
- Bluetooth
- BLE ready
- Ethernet
- Yes
- Energy meter (simple)
- Yes
- Energy meter MID compliant
- No
- Measurement and calibration law compliant
- No
go-e Charger PRO CABLE
- Dimension
- Approx. 18,6 x 29,7 x 9,9 cm
- Weight
- Approx. 2,00 kg
- Voltage
- 230 V - 240 V (single-phase) / 400 V - 415 V (three-phase) 1-/3-phase switching via app
- Plug
- Dimensions according to data sheet (to be provided by installer)
- Configurable charging current
- 6 A to 16 A / 32 A (e. g. 1.4 kW - 3.7 kW - 7.4 kW – 11 / 22 kW) - Charging capacity limited to 11 kW on delivery, can be increased to 22 kW by the installer
- IP rating
- IP66
- Other features
- Identical to Gemini series and also offers:
- V2X ready in accordance with ISO 15118
- Plug&Charge ready in accordance with ISO 15118
- LED display to show the charged kWh
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- yes
- 2G/EDGE fallback
- yes
- Bluetooth
- BLE ready
- Ethernet
- Yes
- Energy meter (simple)
- No
- Energy meter MID compliant
- Yes
- Measurement and calibration law compliant
- No
go-e Charger PRO CABLE ME
- Dimension
- Approx. 18,6 x 29,7 x 9,9 cm
- Weight
- Approx. 2,00 kg
- Voltage
- 230 V - 240 V (single-phase) / 400 V - 415 V (three-phase)
1-/3-phase switching via app - Plug
- Dimensions according to data sheet (to be provided by installer)
- Configurable charging current
- 6 A to 16 A / 32 A (e. g. 1.4 kW - 3.7 kW - 7.4 kW – 11 / 22 kW) - Charging capacity limited to 11 kW on delivery, can be increased to 22 kW by the installer
- IP rating
- IP66
- Other features
- Identical to Gemini series and also offers:
- V2X ready in accordance with ISO 15118
- Plug&Charge ready in accordance with ISO 15118
- LED display to show the charged kWh
- Wi-Fi hotspot
- yes (can be switched off)
- Wi-Fi connection
- yes
- 4G/LTE
- yes
- 2G/EDGE fallback
- yes
- Bluetooth
- BLE ready
- Ethernet
- Yes
- Energy meter (simple)
- No
- Energy meter MID compliant
- Yes
- Measurement and calibration law compliant
- Yes (expected from Q4 2025)
You Want to Become a Reseller?
We have all the information you need for your partnership with go-e. Please contact our support if you have any questions.
Any questions? We will be happy to advise you!
Write to us directly or contact our phone support.
