new

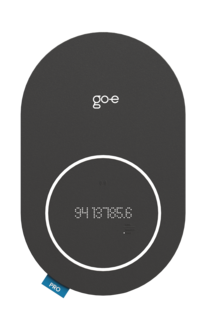

go-e Charger Gemini 2.0

Integrated SIM card

The go-e Charger Gemini 2.0 with integrated SIM card is here and offers you a free mobile phone connection for at least 5 years. An extension is possible for 12 euros (incl. VAT) per year. The stationary wallbox offers up to 22 kW charging power for 1-phase and 3-phase charging from 1.4 kW. The smart wallbox with even more connectivity for your home or company car park.

  • Photovoltaics
  • App
  • Charging Control
  • Scheduler
  • Flexible Energy Tariffs
  • Load Balancing
  • DC Protection Module
  • RFID
  • Wifi & Hotspot
  • Cellular connectivity
  • OCPP
  • API
Buy Now Find Reseller
Discover

Full access from anywhere - even without WiFi

ALWAYS CONVENIENT CHARGING

No matter where you use the new go-e Charger Gemini 2.0, thanks to the integrated SIM card you can access your wallbox from anywhere, even without WiFi, so you can always benefit from the smart functions. Only the MQTT and Modubus TCP protocols still require WiFi due to the high data volume and technical requirements.

Smart charging. Simply arrive

ALWAYS CONVENIENT CHARGING

With the smart stationary wallbox, you can conveniently control and monitor the charging process intelligently from anywhere via app. The go-e Charger Gemini 2.0 with integrated SIM card has all the smart functions of the previous Gemini series, but now also possible without WiFi.

WiFi or SIM card - It’s up to you

ALWAYS CONVENIENT CHARGING

The go-e Charger Gemini 2.0 is always there when you need it. Data is transmitted not only via WiFi, but also via the 4G LTE Cat-1 mobile phone standard or in fallback via 2G / Edge. This means you can use smart functions of the go-e Charger, such as load management, PV surplus charging or flexible and therefore favourable electricity tariffs, to name just a few, even if your go-e Charger is not within WiFi range.

Get updates even faster

ALWAYS CONVENIENT CHARGING

You can now receive new functions, security or software updates not only via WiFi, but also via cellular connectivity. Thanks to over-the-air updates, which are made possible by the SIM card integrated in the wallbox, you now have access to new functions and improvements even if you cannot integrate your go-e Charger into the WiFi network. In this case, too, we will keep your go-e Charger up to date so that it remains your friend for a long time to come.

Fast support thanks to cellular connectivity

ALWAYS CONVENIENT CHARGING

Thanks to cellular connectivity, we can ensure that remote diagnostics and technical support from go-e are easier and more convenient for you if you cannot integrate your go-e Charger Gemini into WiFi.

Weak WiFi is not a problem anymore

Our Product

You don't need to worry about a poor WiFi connection affecting your smart charging experience. The SIM card integrated in the go-e Charger Gemini 2.0 at the factory offers you a free cellular connection for at least 5 years. An extension is possible for 12 euros (incl. VAT) per year. Find out more in the data sheet. If you have a go-e Controller, smooth cooperation between the two devices is also guaranteed.

Everything you need for smart charging

Our Product

No matter which electric car or plug-in hybrid you drive that is registered in Europe. The go-e Charger Gemini 2.0 will reliably charge your electric car as it has a type 2 socket to which any electric car can be connected with a type 2 charging cable or type 1 to type 2 adapter cable. It is suitable for indoor and outdoor use.

Charging with PV surplus

Our Product

With the go-e Charger and the go-e Controller, you can charge simply and intelligently with surplus PV and benefit from dynamic load management. Whether you are an experienced user or new to photovoltaics, the duo is the perfect choice. Connection to other energy management systems is also possible via API and OCPP.

go-e mobile telephony connection including roaming

UNSER PRODUKT

The go-e Charger comes with a non-exchangeable eSIM from go-e ex works. For larger B2B projects, it is possible to install a customer's own SIM card ex works (nano-SIM). The LTE connection can be activated and deactivated at any time in the go-e app or via the API. The mobile connection with the go-e tariff works in all EU countries as well as in the UK, Switzerland, Norway and Liechtenstein, including free roaming.

Smart Charging with go-e App

EVEN SMARTER CHARGING

  • Free download
  • Can be connected to your go-e Charger via Wi-Fi or LTE*
  • Monitor and change charging status at any time
  • Adapt charging processes to personal requirements
  • Personalisation, authorisation and reading electricity metre
  • Many other smart comfort and security settings
  • Available in different languages

* The app can also be used through the access point built into the charger. However, without WiFi or LTE, only local control is possible, and some features like flexible electricity tariffs and load balancing will not be available.

Technical Specifications

Hardfacts

Maximum charging power

  • 2 variants: 11 kW or 22 kW

Configurable charging current

  • 6 A to 16 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW)
  • 6 A to 32 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW - 22 kW)
  • in 1 A steps via app or
  • in 5 steps by push button

Rated voltage

  • 230 V (single phase) / 400 V (three phase)
  • 1-/3-phase switching via app

Security

  • Indoor and outdoor installation
  • DC protection module with direct current detection
  • Locking of the charging cable
  • RFID access control

Comfort and sustainability

  • Electricity metre (log via app download including geo data)
  • RFID chip management
  • Scheduler
  • Flexible electricity tariffs
  • Eco mode / Next Trip Mode
  • Static load balancing
  • Photovoltaic connection via API, OCPP or go-e Controller or alternative EMS

Control, amperage and status display

  • Button, app (local hotspot or worldwide via celluar connectivity or WiFi)
  • Indication via LED and app

Mains connection

  • 1.8 m cable, 5 x 2.5 mm² (11 kW)
  • 1.8 m cable, 5 x 6 mm² (22 kW)
  • each + 2 data cables for grid serving control

Dimensions

  • Approx. 15,5 x 26 x 11 cm

Interfaces, communication protocols

  • HTTP API (Local + Cloud), MQTT, OCPP 1.6, Modbus TCP, Network operator API

Weight

  • Approx. 1,84 kg (11 kW)

  • Approx. 2,30 kg (22 kW)

go-e Charger in Comparison

COMPARE OUR PRODUCTS

Want to see the main distinctions between go-e Chargers? Select the models you would like to compare and find the charger that suits you best.



go-e Charger Gemini 2.0 11 kW


Dimension
Approx. 15,5 x 26 x 11 cm
Weight
Approx. 1.84 kg

Voltage
230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app
Plug
1.8 m cable, 5 x 2.5 mm² (11 kW) + 2 data cables for grid serving control
Configurable charging current
6 A to 16 A (1,4 kW - 3,7 kW - 7,4 kW - 11 kW)
IP rating
IP65
Other features
Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
Wi-Fi hotspot
yes (can be deactivated)
Wi-Fi connection
yes
4G/LTE
yes
2G/EDGE fallback
yes
Bluetooth
no
Ethernet
no
Energy meter (simple)
yes
Energy meter MID compliant
no
Measurement and calibration law compliant
no
Buy Now

go-e Charger Gemini 2.0 22 kW


Dimension
Approx. 15,5 x 26 x 11 cm
Weight
Approx. 2,30 kg

Voltage
230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app
Plug
1.8 m cable, 5 x 6 mm² (22 kW) + 2 data cables for grid serving control
Configurable charging current
6 A to 32 A (1,4 kW - 3,7 kW - 7,4 kW - 11 kW - 22 kW)
IP rating
IP65
Other features
Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
Wi-Fi hotspot
yes (can be switched off)
Wi-Fi connection
yes
4G/LTE
yes
2G/EDGE fallback
yes
Bluetooth
no
Ethernet
no
Energy meter (simple)
yes
Energy meter MID compliant
no
Measurement and calibration law compliant
no
Buy Now
