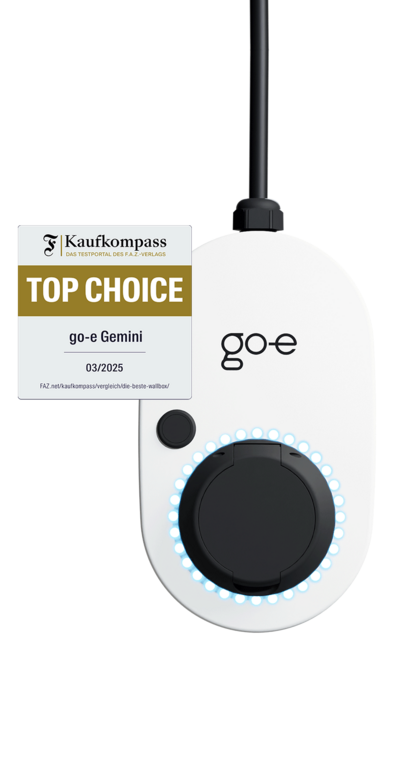

Stationary Wallboxgo-e Charger Gemini
The compact wallbox for stationary use, at home or at the workplace. Simple installation, intuitive operation and smart comfort functions. Charging power from 1.4 kW to 22 kW. 1-phase or 3-phase charging.
Wifi & Hotspot
App
RFID
RCD Protection Module
Charging Control
Photovoltaics
Load Balancing
Scheduler
Flexible Energy Tariffs
API
OCPP
Discover
Please provide consent for marketing and statistics cookies to view this video.
Please provide consent for marketing and statistics cookies to view this video.
Even smarter charging
Smart Charging with go-e App
HARDFACTS
Technical Specifications
Maximum charging power
2 variants: 11 kW or 22 kW
Configurable charging current
6 A to 16 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW)
6 A to 32 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW - 22 kW)
in 1 A steps via app or
in 5 steps by push button
Rated voltage
230 V / 240 V (single-phase) / 400 V / 415 V (three-phase)
1-/3-phase switching via app
Security
Indoor and outdoor installation
RCD protection module with direct current detection
Locking of the charging cable
RFID access control
Comfort and sustainability
Electricity meter (log via app download)
RFID chip management
Scheduler
Flexible electricity tariffs
Eco mode / planned charging mode
Static load balancing
Photovoltaic connection via API
Control, amperage and status display
Button, app (local hotspot or worldwide via WLAN),
Indication via LED and app
Mains connection
1.8 m cable, 5 x 2.5 mm² (11 kW)
1.8 m cable, 5 x 6 mm² (22 kW)
each + 2 data cables for grid serving control
Dimensions
Approx. 15.5 x 26 x 11 cm
Interfaces, communication protocols
HTTP API (Local + Cloud), MQTT,
OCPP 1.6, Modbus TCP, Network operator API
Weight
Approx. 1.84 kg (11 kW)
Approx. 2.30 kg (22 kW)
Calculate Your Charging Time
Determination of approximate values when charging from 0 to 100 %: actual charging time and charging speed may deviate due to rounding differences and external influences. Charging power when charging via household plug is always limited to 2.3 kW. Errors excepted.
- Audi
- BMW
- Mini
- Citroën
- Dacia
- DS
- e-Go
- Fiat
- Ford
- Honda
- Hyundai
- Jaguar
- Kia
- Lexus
- Mazda
- Mercedes
- MG
- Nissan
- Opel
- Peugeot
- Polestar
- Porsche
- Renault
- Škoda
- Smart
- Sono
- Tesla
- Toyota
- Volvo
- VW
- Q4 35 E-tron
- Q4 35 E-tron Sportback
- Q4 40 E-tron
- Q4 40 E-tron Sportback
- Q4 50 E-tron
- Q4 50 E-tron Sportback
- E-tron 50
- E-tron Sportback 50
- E-tron 55
- E-tron Sportback 55
- E-tron S
- E-tron GT
- RS E-tron GT
- go-e Charger Gemini flex 11 kW
- go-e Charger Gemini flex 22 kW
- go-e Charger Gemini 11 kW
- go-e Charger Gemini 22 kW
- go-eCharger HOME+ 11 kW
- go-eCharger HOME+ 22 kW
- go-eCharger HOMEfix 11 kW
- go-eCharger HOMEfix 22 kW
Adapter
Estimated charging time
7.57h
Maximum charging output
7.4kW
Compare our products
go-e Charger in Comparison
Want to see the main distinctions between go-eChargers? Select the models you would like to compare and find the charger that suits you best.
- go-e Charger Gemini flex 11 kW
- go-e Charger Gemini flex 22 kW
- go-e Charger Gemini 11 kW
- go-e Charger Gemini 22 kW
- go-eCharger HOMEfix 11 kW
- go-eCharger HOMEfix 22 kW
- go-eCharger HOME+ 11 kW
- go-eCharger HOME+ 22 kW
- go-e Charger Gemini flex 11 kW
- go-e Charger Gemini flex 22 kW
- go-e Charger Gemini 11 kW
- go-e Charger Gemini 22 kW
- go-eCharger HOMEfix 11 kW
- go-eCharger HOMEfix 22 kW
- go-eCharger HOME+ 11 kW
- go-eCharger HOME+ 22 kW
- go-e Charger Gemini flex 11 kW
- go-e Charger Gemini flex 22 kW
- go-e Charger Gemini 11 kW
- go-e Charger Gemini 22 kW
- go-eCharger HOMEfix 11 kW
- go-eCharger HOMEfix 22 kW
- go-eCharger HOME+ 11 kW
- go-eCharger HOME+ 22 kW
go-e Charger Gemini flex 11 kW
Dimensions
Approx. 15.5 x 26 x 11 cm
Weight
Approx. 1.63 kg
Rated voltage
230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app
Mains connection
30 cm cable, 5 x 2.5 mm² + plug CEE red 16 A
Configurable charging current
6 A to 16 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW)
IP Protection class
IP55
Other functions
Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
go-e Charger Gemini flex 22 kW
Dimensions
Approx. 15.5 x 26 x 11 cm
Weight
Approx. 1.82 kg
Rated voltage
230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app
Mains connection
30 cm cable, 5 x 6 mm² + plug CEE red 32 A
Configurable charging current
6 A to 32 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW - 22 kW)
IP Protection class
IP55
Other functions
Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
go-e Charger Gemini 11 kW
Dimensions
Approx. 15.5 x 26 x 11 cm
Weight
Approx. 1.84 kg
Rated voltage
230 V / 240 V (single-phase) or 400 V / 415 V (three-phase)
1-/3-phase switching via app (from hardware version V3)
Mains connection
1.8 m cable, 5 x 2.5 mm² (11 kW) + 2 data cables for grid serving control
Configurable charging current
6 A to 16 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW)
IP Protection class
IP55
Other functions
Identical for all products of the go-eCharger HOME series (from V3) and go-e Charger Gemini series
